An entire conference system in a practical aluminium box - that's DIGIMIC mini. This special system of the DIGIMIC family is ideal for meetings or smaller conferences.
-The DIGIMIC mini convinces not only by its timeless, simple design, but also by its easy handling. The microphone units are connected to the compact central unit. A small, directional plug with automatic locking ensures clear cabling.

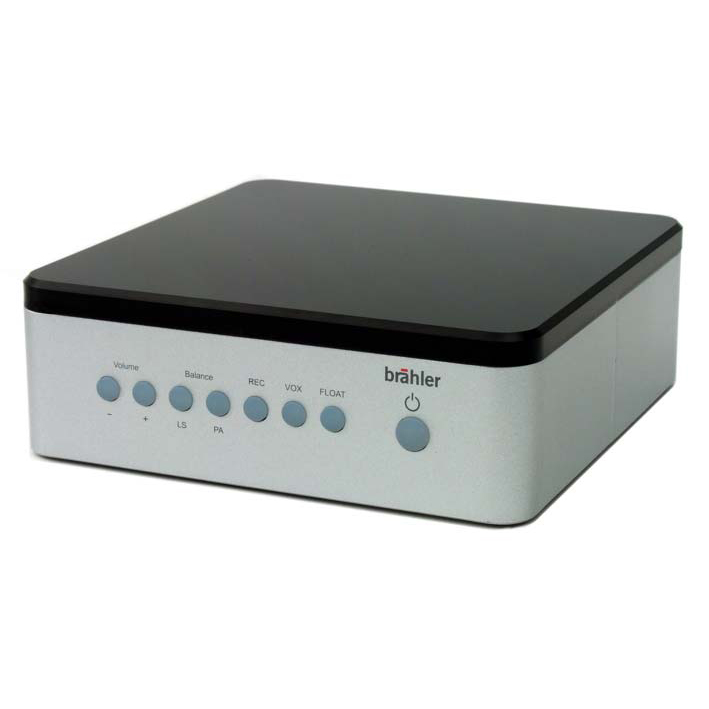

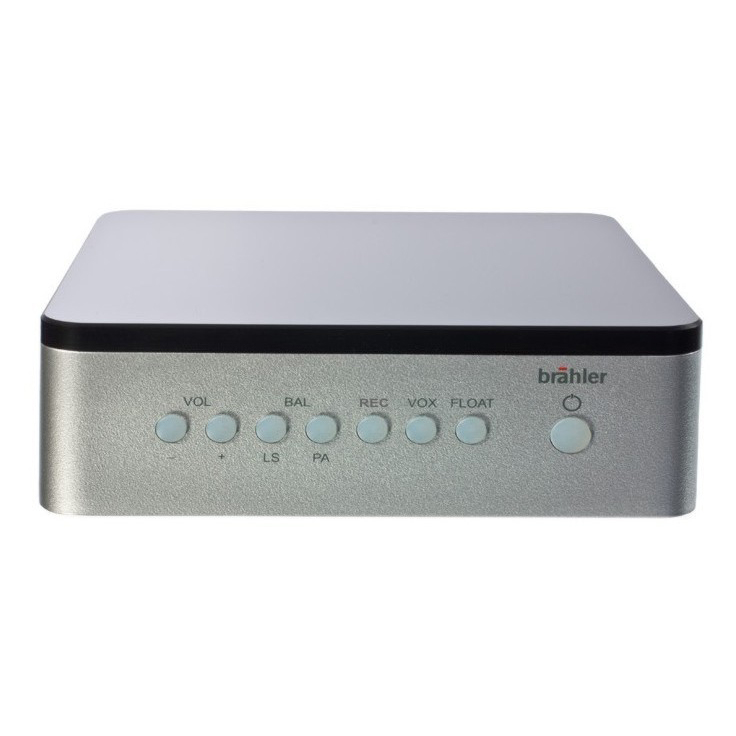

-The DCen mini central control unit controls all connected delegate units of the DIGIMIC system, configures them automatically and forwards the digital audio signals.
-The DCen mini operates independently in three different microphone modes: AUT, FLOAT and VOX.
Up to 25 microphone units can be connected to the DIGIMIC mini compact control unit, which can be easily expanded if required, as additional refreshing power supplies can be integrated.
-As soon as a unit is connected to the central control unit, it is immediately ready for use without any further settings.
-No configuration or connection to a PC is required. In conjunction with the software brählerOS, the DCen mini can also be controlled via software.
-Stowed away in a high-quality aluminium box, DIGIMIC mini can be used as a mobile unit and is quick and easy to set up and dismantle.
-Completely silent operation
-Modern and timeless design
-Easily expandable for additional requirements
-The DIGIMIC mini convinces not only by its timeless, simple design, but also by its easy handling. The microphone units are connected to the compact central unit. A small, directional plug with automatic locking ensures clear cabling.
-The DCen mini central control unit controls all connected delegate units of the DIGIMIC system, configures them automatically and forwards the digital audio signals.
-The DCen mini operates independently in three different microphone modes: AUT, FLOAT and VOX.
Up to 25 microphone units can be connected to the DIGIMIC mini compact control unit, which can be easily expanded if required, as additional refreshing power supplies can be integrated.
-As soon as a unit is connected to the central control unit, it is immediately ready for use without any further settings.
-No configuration or connection to a PC is required. In conjunction with the software brählerOS, the DCen mini can also be controlled via software.
-Stowed away in a high-quality aluminium box, DIGIMIC mini can be used as a mobile unit and is quick and easy to set up and dismantle.
-Completely silent operation
-Modern and timeless design
-Easily expandable for additional requirements
Digital Audio
Sample rate: 48 kHz
Frequency response: 20 - 20,000 Hz
Low susceptibility to mobile phone interference (mobile phone, Bluetooth, UMTS, WiFi, etc.)

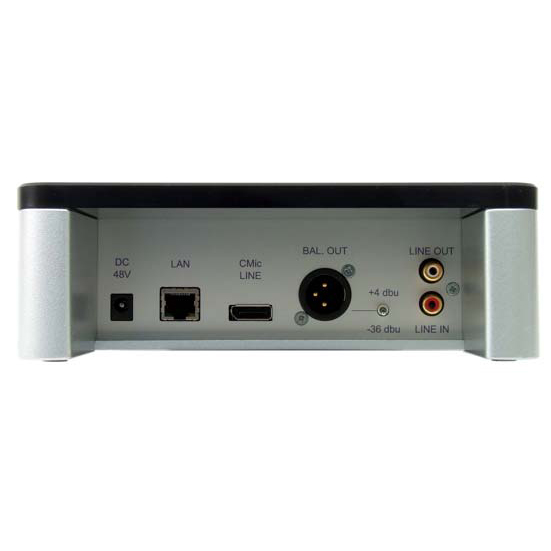

Connections
Analog output: XLR socket balanced
switchable Mic/Line
LINE OUT / IN Cinch connector
Network interface (TCP/IP)
DisplayPort connector for delegate units
Features
2 illuminated keys for operating the microphone modes
4 illuminated buttons for PA output level and loudspeaker level
Output short-circuit and overload protected
Housing
plastic, silver painted, surface black
W x H x D: 200 x 65 x 200 mm
Weight: approx. 2 kg
Sample rate: 48 kHz
Frequency response: 20 - 20,000 Hz
Low susceptibility to mobile phone interference (mobile phone, Bluetooth, UMTS, WiFi, etc.)
Connections
Analog output: XLR socket balanced
switchable Mic/Line
LINE OUT / IN Cinch connector
Network interface (TCP/IP)
DisplayPort connector for delegate units
Features
2 illuminated keys for operating the microphone modes
4 illuminated buttons for PA output level and loudspeaker level
Output short-circuit and overload protected
Housing
plastic, silver painted, surface black
W x H x D: 200 x 65 x 200 mm
Weight: approx. 2 kg
