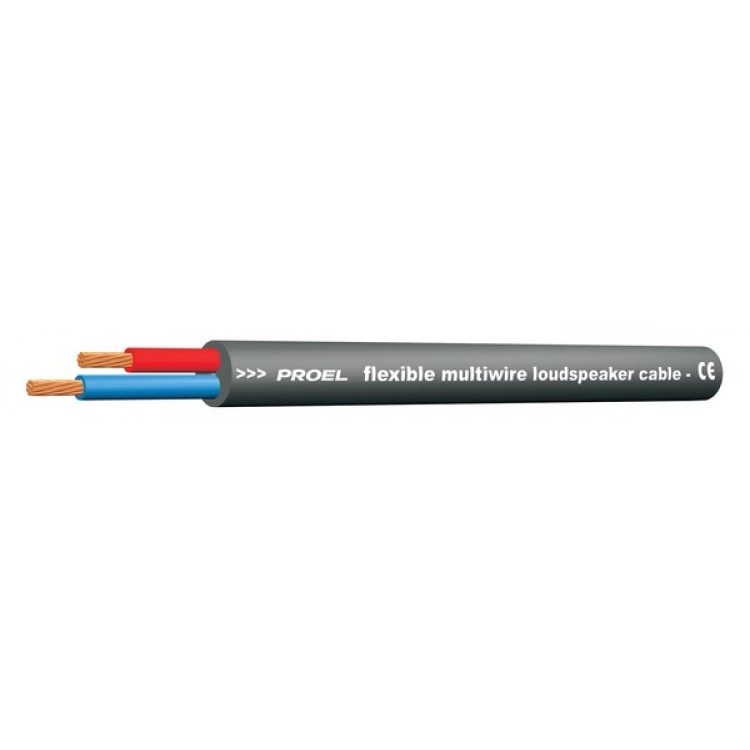

Ultra-flexible 2 twisted conductors speaker cable for passive loudspeakers - 2 x 2,5 mm2 sect
Application fields: Passive speaker connections / sound reinforcement / studio installation / live
Conductors: Bare copper 14 AWG = 48x0,25 mm
Lay up: two conductors twisted in short concentric layers
Insulation: flexible PVC 3,20 mm
Jacket: Ultra - Flexible PVC – 60 Shore
Overall diameter: 8,4 mm
Cable section: 2.5 mm2/AWG14
Electrical Resistance @ 20°C: 7,4 Ohm/Km (conductor)
Electrical Capacitance @ 1 KHz: 131 pF/mt (conductor/conductor)
Operating temperature: -20°C / +70°C
Minumum bendig radius: 10 x overall diameter
Weight: 161 Kg/Km
Color: Black
Packaging: 100 m standard carton reel
