Features:

• Dante Network Interface for Four Audio Inputs and Four Audio Outputs

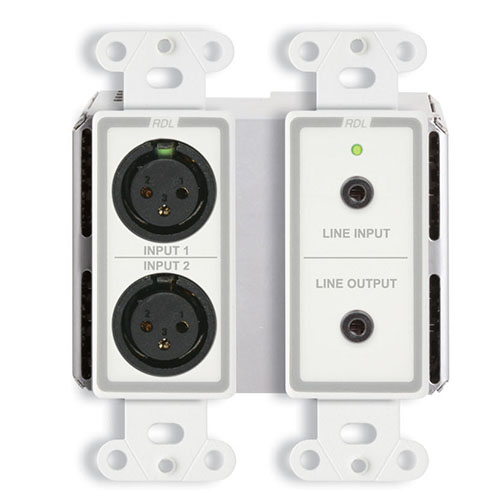

• One Mini-jack and Two XLR Front-Panel Inputs

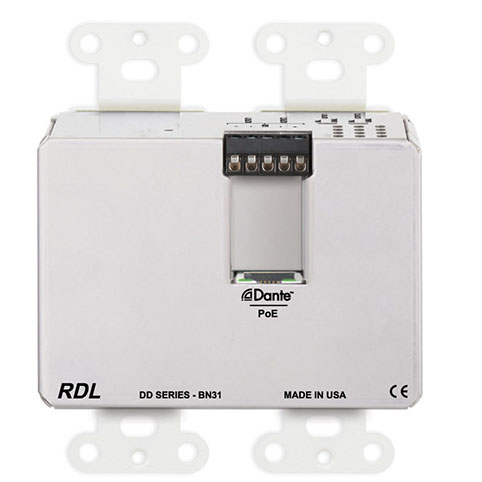

• One Mini-jack Front-Panel Output; Two Outputs on Rear-Panel Terminal Block
• Converts Two Standard XLR Mic or Line Audio Sources to Dante Network Channels
• Each XLR Input is Switch Selectable for Mic or Line
• Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
• Switch-Selectable 48 V Mic Phantom (P48)
• Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
• Mini-jack -10 dBV Input is Switch Selectable Stereo or Summed to Mono
• Converts Four Dante Network Audio Signals to Line Level
• Mini-jack -10 dBV Output is Switch Selectable Stereo or Mono (Left Channel)
• Rear Panel Outputs Switch Selectable Balanced +4 dBu or Unbalanced -10 dBV
• Special Software Not Required for Module Setup
• Studio Quality, Low-Noise Performance
• High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
• Legendary RDL Analog Filtering Enhances Superb Audio Performance
