The Digi-Wave™ system is a digital spread-spectrum (DSS), simultaneous two-way wireless listening system. Using it’s frequency-hopping algorithm, it avoids interference and is a very secure method of communication. The Digi-Wave communication system allows users to listen and talk to one another wirelessly in a variety of scenarios.
A Digi-Wave system consists of at least one transceiver (DLT 400) and various combinations of transceivers and receivers (DLR 400 RCH or DLR 400 ALK). Combinations of one or more DLT’s and DLR’s can be used to facilitate different events, depending on what needs to be spoken and what needs to be heard. Typical scenarios include:
-Guided Tours – with one or more tour guides (2-way), with audience participation (2-way), or without audience participation (1-way)-Language Interpretation – one or more interpreted languages transmitted to audience (1-way)
-Intercom – with up to six people able to speak simultaneously, and even more listening
-Hearing Assistance – featuring boosted audio for improved comprehension
The DLR 400 ALK uses alkaline batteries. If a rechargeable version is preferred, see the DLR 400 RCH.

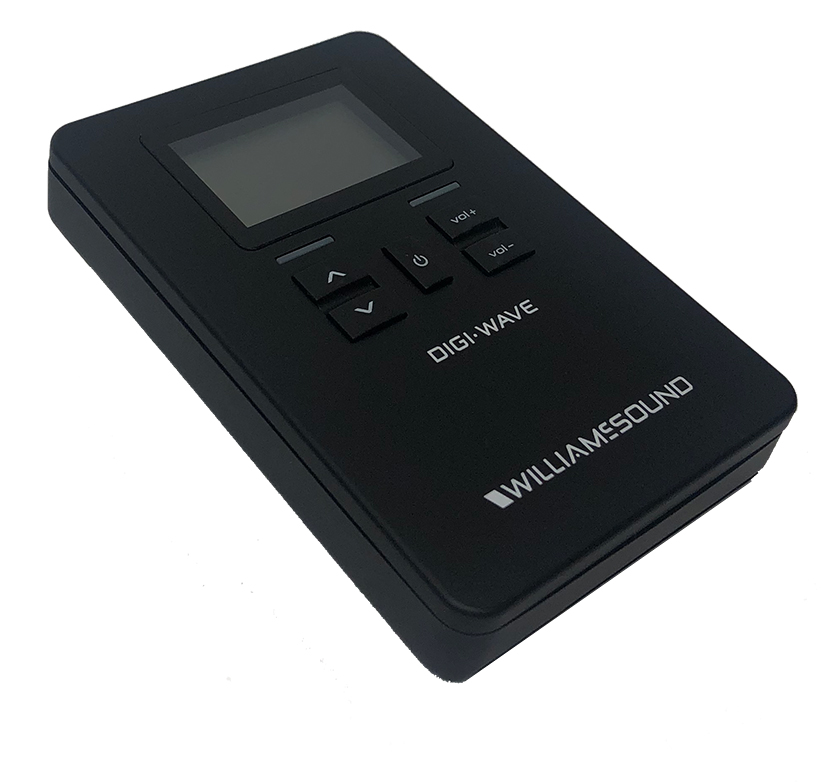

DLR 400 ALK
| Dimensions: | 2.36″ W x 3.54″ H x 0.63″ D (60 mm x 90 mm x 16 mm) |
| Weight: | 1.7 oz. (47 g) without batteries. |
| Frequency Band: | 2.4 GHz (ISM band) |
| Modulation: | FSK |
| Case Material: | Black ABS Plastic |
| Battery Type: | 2 x AAA Alkaline Batteries |
| Battery Life: | Alkaline Disposable (BAT 010-2): Up to 30 hrs |
| Power Save: | Auto Sleep Mode after 5 minutes of no RF signal from compatible devices |
| Audio Frequency Response: (-3dB level) |
Intercom Mode: 100 – 7,300 Hz Interpretation and other modes: 100-11,200 Hz |
| SNR: | 74 dB (A-weighted) |
| THD: | 0.1% (typical) |
| Antenna: | Internal |
| Range: | Up to 900 ft (274 m) (depending upon environmental conditions) |
| Headphone Audio Output: | 3.5 mm TRRS jack with mono output for headphones, earphones, or neckloop 27 mW maximum @32 ohms |
| Display: | LCD shows status: Battery Level, RSSI, Group/Channel # |
| Temp. Range: | 14° – 113°F (-10° to 45°C) |
| Compatible Units | DLT 400, DLT 300 |
| Approvals: | FCC, Industry Canada, RoHS 3, CE, WEEE, RCM, ANATEL, KC, Giteki |
